Generic Phosgene Process
Owner
/ Undefined Technology Provider
Brand
Generic Phogene Process from CO and Cl2
Process
Carbonylation
Type
Phosgene from Chlorine and Carbon Monoxide
Available
Insight Articles
#TE94

Description



A generic phosgene production technology is provided based on the upper level phosgene process description for whenever the actual technology employed is not known.

Steps and pieces of equipment (units) for the Simplified Phosgene Process Flow Diagram in the illustration:

  • Feed: High-purity, dried CO and Cl2.
  • Mixer: Inline or packed bed mixer for even gas distribution.
  • Primary Reactor: Fixed bed of activated charcoal (typically coconut shell type).
  • Secondary Reactor: Completes conversion and manages temperature profile
  • Condenser & Separation: Cools product, condenses phosgene, vents to absorber.
  • Wash Columns & Distillation: Removes residual Cl2, HCl, and byproducts, distills final product
  • Caustic Scrubbers: Destroy residual phosgene by NaOH neutralization; incinerator or activated carbon beds as end-of-pipe controls.
Please login/register for full access
Insight Articles
Your insights will be shown here
Technology Picture

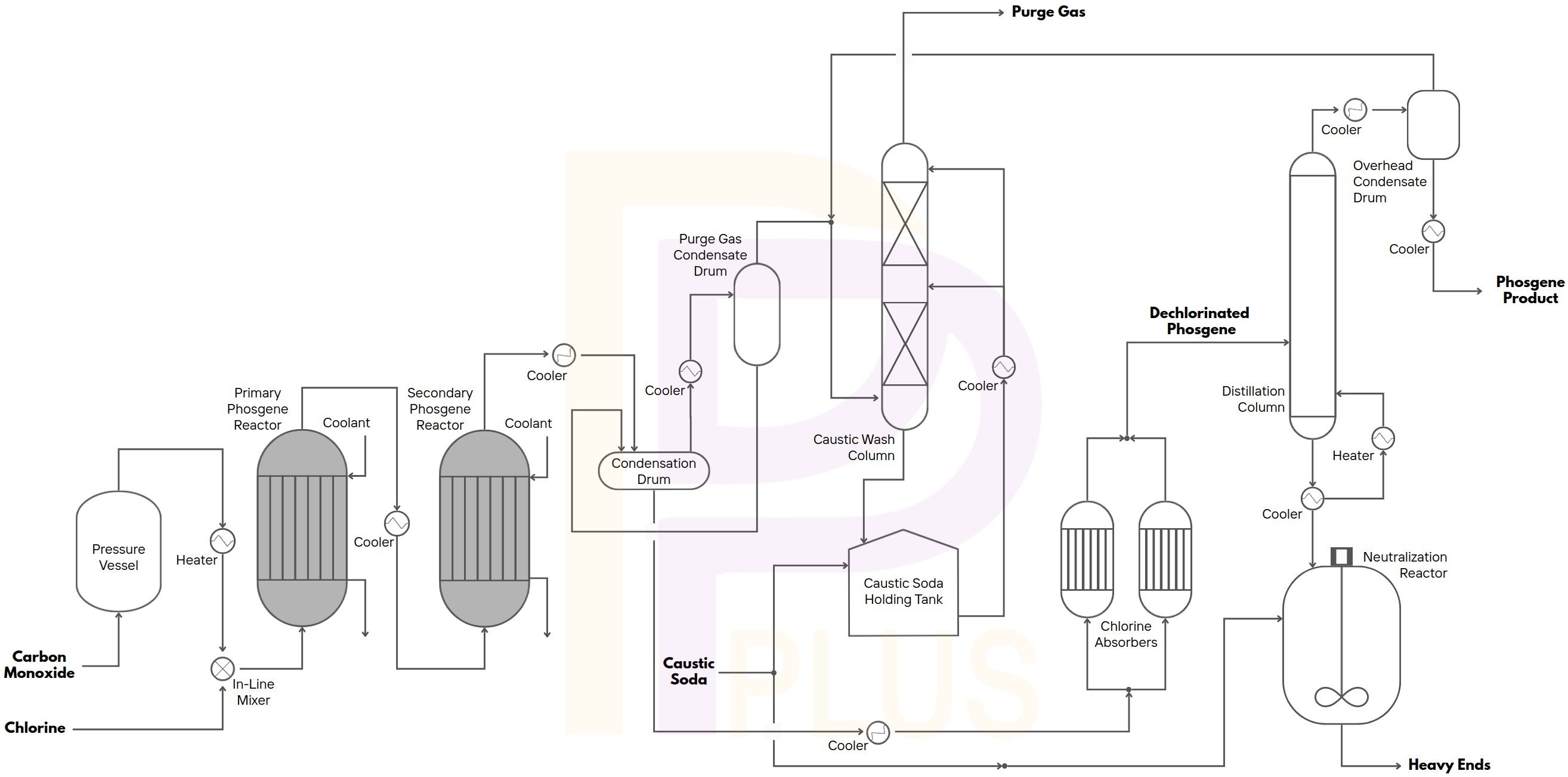

Simplified Phosgene Process Flow Diagram
Technology Picture
Simplified Phosgene Process Flow Diagram
Title Date
  Map
Entity Site (Country) Asset (Plant)
Sadara Sadara Phosgene Plant
