Evonik's alkoxides technology has evolved over 80 years of catalysts development expertise and decades of alkoxide production experience. The technology builds upon Evonik's legacy in homogeneous and heterogeneous catalysts, with alkoxide production dating back to the company's early chemical operations.​

Historical Development:

• 1970s-1980s: Initial alkoxide production using conventional batch processes
• 1990s-2000s: Transition to continuous processes and reactive distillation technology
• 2007-2010: Development of energy-efficient processes with vapor recompression (US Patent 7847133B2)​
• 2020-2023: Advanced technology development with simultaneous sodium/potassium production capabilities (US Patent 11746075B2)​
• 2023-2025: Implementation of reduced carbon emission processes and global expansion

The technology heritage stems from Evonik's Degussa legacy, with continuous innovation in process intensification and energy efficiency.

The "SMART" (Sodium Methylate Advanced Recompression Technology) designation was introduced as the project name and technology focus for Evonik’s Singapore alkoxides plant inaugurated in 2025, highlighting the latest advances in energy-efficient alkoxide production but not serving as a universal branding for all of Evonik’s global alkoxide process technology.

Technology Summary and Chemistry

Core Technology Concept:
SMART technology combines reactive distillation with advanced vapor recompression to produce high-quality sodium methoxide and potassium methoxide from hydroxide feedstocks and methanol. The process addresses the fundamental thermodynamic limitation of the hydroxide-methanol equilibrium reaction through continuous water removal and energy recovery (Fig. 1):​

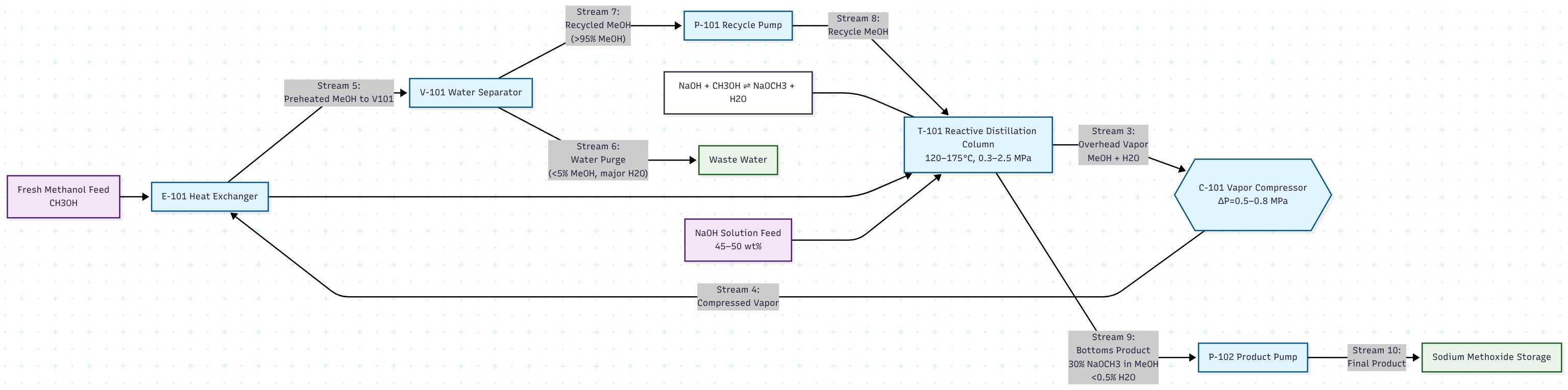

Figure 1 - Evonik sodium methylate technology via the alkali hydroxide-methanol route (Appendix 1)

Primary Chemistry:
The technology is based on the deprotonation reactions:

• Sodium route: NaOH + CH₃OH ⇌ NaOCH₃ + H₂O (ΔH = -15.2 kJ/mol)
• Potassium route: KOH + CH₃OH ⇌ KOCH₃ + H₂O (ΔH = -18.7 kJ/mol)​

Key Technological Innovations:

• Simultaneous Production: Capability to produce both sodium and potassium alkoxides in a single process unit​
• Advanced Recompression: Mechanical vapor recompression reduces energy consumption by 40-60%​
• Energy Integration: Heat exchanger networks maximize thermal efficiency
• Process Intensification: Reactive distillation eliminates separate reaction and separation steps

Detailed Step-by-Step Process Description

Step 1: Feed Preparation and Injection

• Methanol Feed Stream (S-1): High-purity methanol (>99.5%) is preheated to 60-80°C using recovered heat from the process
• Hydroxide Feed Stream (S-2): Aqueous NaOH solution (45-50 wt%) or KOH solution (45-48 wt%) is prepared and fed to the reactive zone
• Feed Ratio: Maintained at slight stoichiometric excess of methanol (1.05-1.10:1 molar ratio) to drive equilibrium conversion​

Step 2: Reactive Distillation

• Reaction Zone (Middle Section): 8-12 theoretical stages operating at 120-175°C and 0.3-2.5 MPa
• Mass Transfer: Intimate contact between vapor and liquid phases enhances reaction kinetics
• Equilibrium Shift: Continuous water removal drives conversion to >98% of theoretical​
• Residence Time: 15-45 minutes in reactive zone ensures complete conversion​

Step 3: Vapor Recovery and Compression

• Vapor Stream (S-3): Methanol-water vapor mixture exits column top at 65-85°C
• Mechanical Compression: Vapor is compressed to 0.8-1.2 MPa using energy-efficient compressors
• Temperature Rise: Compression increases vapor temperature to 120-140°C for heat recovery​

Step 4: Heat Integration and Energy Recovery

• Primary Heat Exchanger: Compressed vapor preheats incoming methanol feed
• Reboiler Duty: Recovered heat provides 40-60% of column reboiler energy requirements​
• Steam Generation: Excess heat generates low-pressure steam for other plant operations

Step 5: Water Separation and Methanol Recovery

• Condensate Separation: Compressed vapor is partially condensed to separate water-rich phase
• Methanol Recovery: Methanol-rich stream is returned to the process after purification
• Water Removal: Water stream (S-6) contains <5% methanol and is sent to wastewater treatment

Step 6: Product Recovery and Quality Control

• Bottom Product (S-5): High-concentration alkoxide solution (28-32 wt%) is withdrawn continuously
• Product Cooling: Product is cooled to 25-35°C in heat exchangers
• Quality Specifications: Final product meets NM 30 (30% sodium methoxide) or KM 32 (32% potassium methoxide) standards​

Operating Conditions:

• Temperature Profile: 60-80°C (feed) → 120-175°C (reaction zone) → 25-35°C (product)
• Pressure: 0.3-2.5 MPa throughout the system​
• Reflux Ratio: 2-5:1 for optimal water separation efficiency

This Evonik patent US11746075B2 describes a completely different process configuration than my previous single-column diagram. The patent specifically covers simultaneous production of both sodium AND potassium alkoxides using multiple columns.

Simultaneous production of sodium and potassium alcoholates

Evonik has developed a special process configuration for the simultaneous production of sodium and potassium alcoholates (US patent 11746075B2). Here are the key process configurations Evonik has developed (Fig. 2):

Two Separate Reaction Columns + Recovery Column:

• Column 101: NaOH + methanol → sodium methoxide
• Column 102: KOH + methanol → potassium methoxide
• Column 103: Combined vapor recovery column for methanol separation

More Advanced Configurations

• Dividing wall columns for simultaneous but spatially separated reactions
• Integrated rectification sections for methanol recovery
• Side columns for enhanced separation efficiency

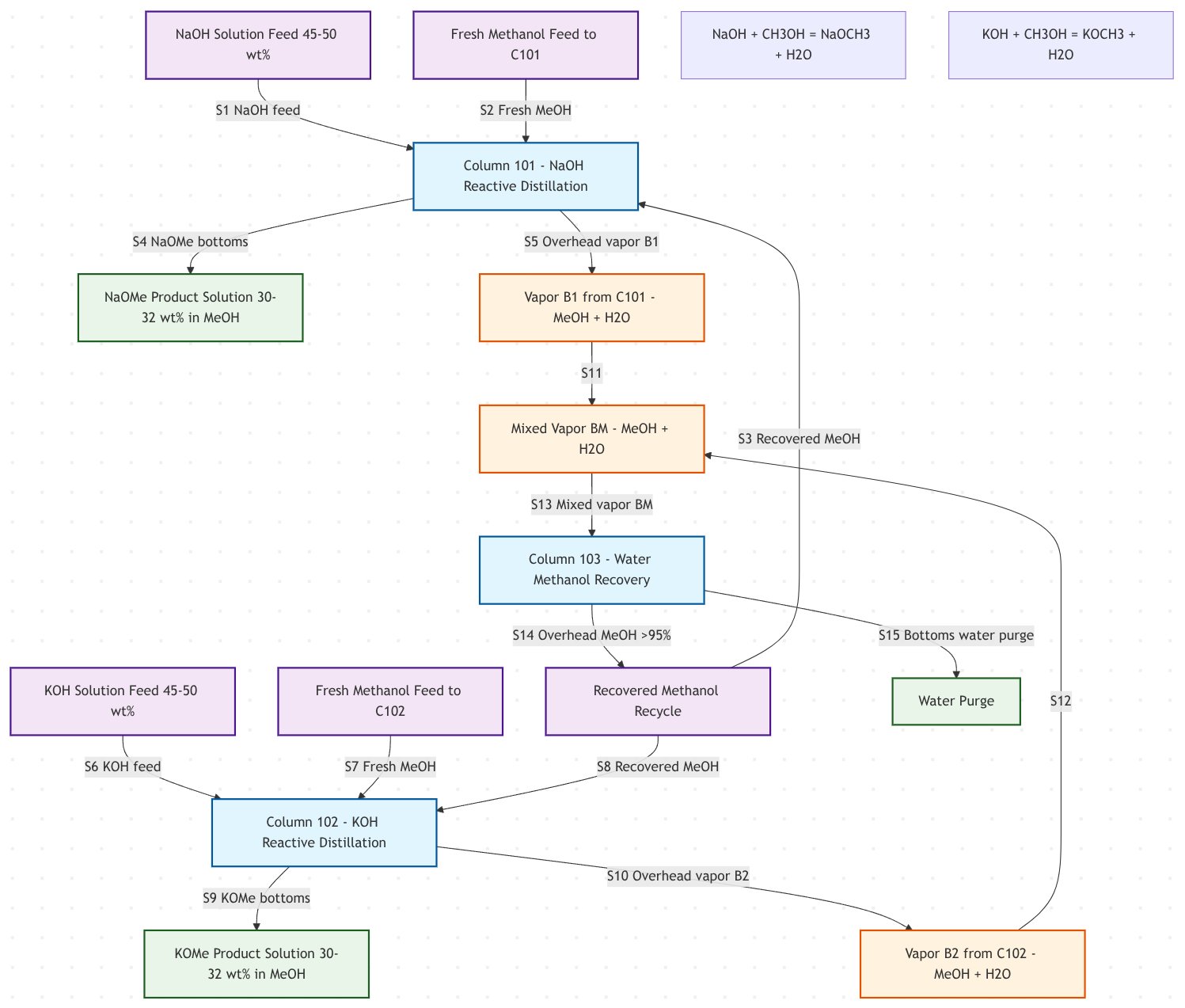

Figure 2 - Evonik's simultaneous production of sodium and potassium methylates via the alkali hydroxide-methanol route (Appendix 2)

Process Efficiency

Conversion and Yield Performance:

• Hydroxide Conversion: >98% conversion of NaOH/KOH achieved through continuous water removal​
• Alkoxide Yield: >95% yield based on hydroxide feed, with minimal side reactions​
• Product Purity: Consistently achieves 28-32 wt% alkoxide content with <0.5% water and <0.5% free hydroxide​

Selectivity Characteristics:

• Primary Reaction Selectivity: >99% selectivity to desired alkoxide products
• Side Reactions: Minimal ether formation (<0.1%) due to controlled temperature profile
• Impurity Control: Advanced process control maintains consistent product specifications​

Energy Efficiency Metrics:

• Heat Recovery: 70-80% of reaction heat recovered through vapor recompression system
• Specific Energy Consumption: 1.2-1.8 GJ/tonne alkoxide product (industry benchmark: 2.5-3.5 GJ/tonne)
• Energy Reduction: 40-60% reduction in steam consumption compared to conventional processes​, as claimed by the technology owner

Process Reliability:

• On-Stream Factor: >95% annual on-stream reliability through robust design
• Catalyst Life: Homogeneous process eliminates catalyst replacement requirements
• Maintenance Intervals: 18-24 months between major maintenance shutdowns

Commercial Experience

Global Production Network:
Evonik operates alkoxide technology across four continental locations,  ​

• Germany (Niederkassel-Lülsdorf), now divested to LSF: Original technology development site with multiple production lines
• United States (Mobile, Alabama): Expanded capacity facility serving North American markets​
• Argentina (Rosario): South American production hub with 50% capacity expansion completed​
• Singapore (Jurong Island): Latest 100,000 tpy SMART plant representing state-of-the-art technology​

Commercial Track Record:

• Production Capacity: Combined global capacity exceeds 400,000 tonnes per annum​
• Market Position: Leading global supplier with approximately 25-30% market share​
• Customer Base: Serves >200 customers across biodiesel, pharmaceutical, and specialty chemical industries
