Site

As of 2017, the TAIF-NK refinery's design throughput capacity is 8.3 MMTPA, including 7.3 MMTPA of crude oil nd 1.0 MMTPA of gas condensate.
TAIF-NK produces more than 25 oil product items.

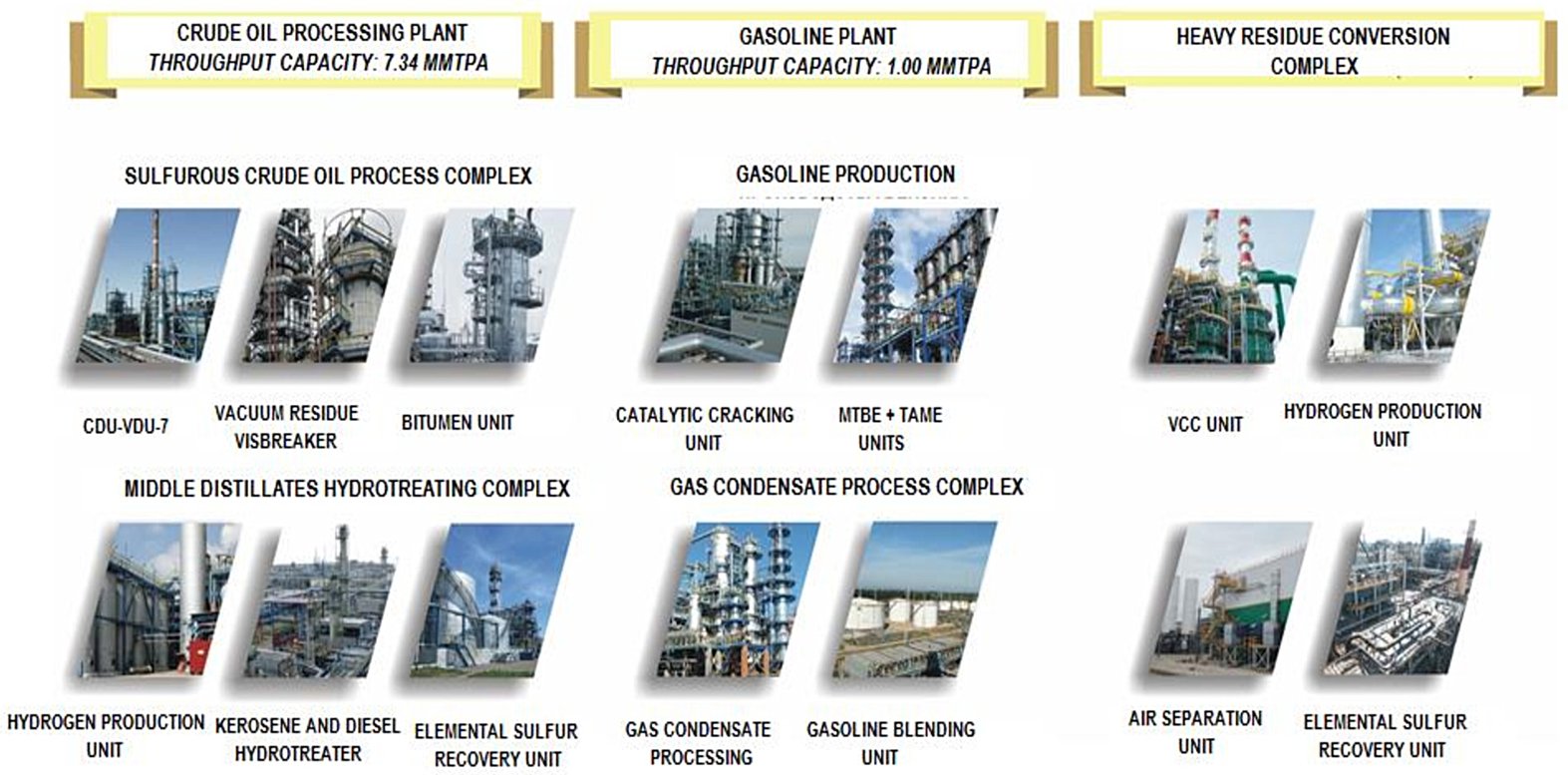

Figure 1 - TAIF NK Refinery Assets (Dec 2022 TAIF-NK JSC Presentation)

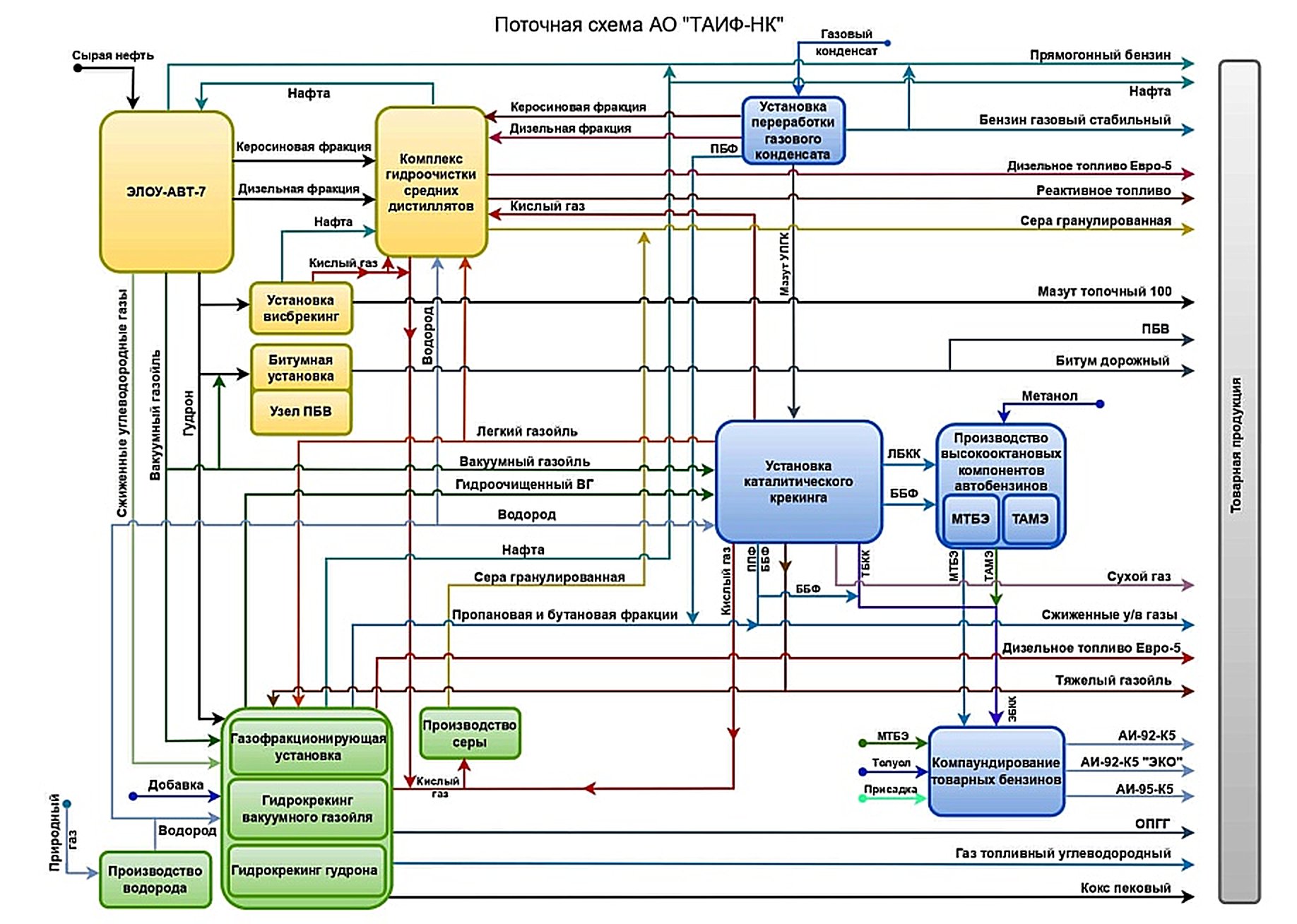

Figure 2 - TAIF-NK Refinery Flow Chart (from taifnk.ru/production web archive, 5^th May 2023)

• The refinery utilization rate was 98% in 2017:
  • Primary feedstock processing: 8.2 mln tonnes:
    • Gas Condensate: 0.8 mln tonnes, 9.8%
    • Crude Oil: 7.4 mln tonnes, 90.2%
  • Processing depth:
    • Fuel oil and losses: 25.1%
    • Target oil products: 74.9%
  • Product pool: 8.0 mln tonnes
    • Diesel fuel: 2.2 mln tonnes, 27.9%
    • Naphtha: 1.5 mln tonnes, 19.2%
    • Motor gasoline: 0.5 mln tonnes, 6.0%
    • Kerosene and aviation kero: 0.4 mln tonnes, 4.9%
    • Fuel Oil: 2.0 mln tonnes, 24.9%
    • Vacuum gasoil: 1 mln tonnes, 12.2%

• In 2021 the oil refining efficiency reached 87.78%, the yield of target petroleum products was 77.66%, the yield of light petroleum products was 53.53%.
  In 2021 the volume of commercial products produced at the Crude Oil Processing Plant amounted to 5,711,642 tonnes:
  • Diesel Fuel summer/off-season, grade DT-L(E)–K5 in the volume of 1,948,201 tonnes;
  • Diesel Fuel winter, grade DT-Z–K5 in the volume of 378,410 tonnes;
  • Jet Fuel, grade RT in the volume of 81,248 tonnes;
  • Straight Run Gasoline according to the Technical Specification in the volume of 959,482 tonnes;
  • Bitumen Petroleum in the volume of 93,659 tonnes (including polymer-bitumen binders);
  • Granulated Sulfur, grade 9998 in the volume of 32,134 tonnes;
  • Heating Oil, grade M-100 in the volume of 772,721 tonnes
  • Vacuum Gas Oil/ Petroleum Fuel of vacuum distillation in the volume of 1,445,787 tonnes.
