Type
Condensation of Phenol with Acetone
Process
Condensation Reaction
Abbreviation
BPA

Process Summary

Bisphenol A (BPA) is a key industrial chemical primarily synthesized through the acid-catalyzed condensation of phenol and acetone. BPA was first synthesized in 1891 by Russian chemist Aleksandr Dianin. Commercial production began in the 1930s using hydrochloric acid (HCl) catalysts, but corrosion and waste challenges led to the adoption of ion-exchange resin catalysts in the 1970s. Today, BPA is a cornerstone of polycarbonate plastics and epoxy resins, with global production exceeding 10 million tonnes annually.

The core reaction involves 2 moles of phenol and 1 mole of acetone, catalyzed by an acid:

Key points:

  • Catalysts: Modern processes use sulfonated polystyrene ion-exchange resins, replacing corrosive HCl.
  • Promoters: Organic sulfur compounds (e.g., methyl mercaptan) enhance reaction rates and selectivity.
  • Byproducts: Minor isomers (e.g., 2,4-BPA) and oligomers (e.g., trisphenol) form but are minimized via optimized conditions.

Process Flow

  • Reaction Section: The BPA manufacturing process begins with the reaction of phenol and acetone in a fixed-bed reactor packed with sulfonated polystyrene ion-exchange resin as the catalyst. To drive the reaction toward high conversion and selectivity, an excess of phenol (typically a 4:1 molar ratio to acetone) is used. The reactor operates at moderate temperatures, generally between 50°C and 70°C, producing a crude mixture containing BPA, unreacted phenol, water, and minor byproducts.
  • Dehydration: Following the reaction, the mixture undergoes a dehydration step where distillation is used to remove water, unreacted acetone, and catalyst promoters, producing a solution concentrated in BPA and phenol.
  • Concentration & Crystallization: The concentrated solution is subjected to a crystallization process. During this stage, BPA forms a 1:1 crystalline adduct with phenol, which is separated from the mother liquor by centrifugation. The mother liquor, still rich in BPA and phenol, is recycled back into the process to maximize overall yield.
  • Purification: In the purification step, the BPA-phenol adduct is melted, and phenol is stripped via vacuum distillation, leaving behind purified BPA. To further enhance purity and remove any residual acidic impurities, the product is treated with basic anion-exchange resins.
  • Finishing: Finally, the purified molten BPA is cooled and solidified, often by prilling, which produces uniform spherical pellets suitable for storage and transport. This sequence of operations ensures high product purity and process efficiency while minimizing waste and energy consumption.
  • Waste and Byproduct Handling: Byproducts (e.g., BPA isomers, tars) and wastewater (containing phenol, acetone, or solvents) are treated or recovered. Phenol and acetone are recycled where possible, and wastewater is sent to biotreatment or supercritical fluid extraction systems for environmental compliance.

Process Efficiency

  • Modern BPA plants typically operate at 100,000–300,000 tonnes/year scales, balancing economies of scale with operational flexibility.
  • Batch processes achieve 92–96% yields but are increasingly supplanted by continuous-flow systems that maintain >98% acetone conversion and 95–97% BPA selectivity through optimized temperature/pressure control.
  • Larger facilities leverage integrated energy recovery, reducing thermal energy consumption to 2.5–3.2 GJ/tonne BPA by recycling heat from exothermic reactions and distillation.
  • Catalyst longevity improves at scale, with ion-exchange resins lasting 18–24 months in continuous reactors before regeneration, thanks to steady-state operation and reduced thermal cycling.
  • Waste generation is minimized to <0.5 kg/tonne BPA in advanced plants through closed-loop phenol recovery (99.8% efficiency) and catalytic treatment of byproducts.
  • Smaller-scale facilities (10,000–50,000 tonnes/year) face higher per-unit costs but remain viable for specialty-grade BPA production.
  • As the only by-product is water, BPA manufacturing may be considered an industrial example of green chemistry.

References

  1. Ullmann's Encyclopedia of Industrial Chemistry, “Bisphenol A,” Wiley-VCH, 2012.
  2. A. P. Dianin, J. Prakt. Chem., 1891, 44, 226–234.
  3. Kirk-Othmer Encyclopedia of Chemical Technology, “Bisphenol A,” Wiley, 2014.
  4. IHS Markit, “Chemical Economics Handbook: Bisphenol A,” 2022.
  5. S. Sato et al., “Bisphenol A production using acid catalysts and promoters,” Industrial & Engineering Chemistry Research, 1997, 36(3), 808–813.
  6. L. H. Klemm, “By-products in Bisphenol A Synthesis,” J. Chem. Eng. Data, 1980, 25(4), 355–359.
  7. Mitsubishi Chemical, “Bisphenol-A Production Process,” Technical Brochure, 2021.
  8. E. M. Sorensen, “Crystallization of Bisphenol A,” US Patent 4,153,581, 1979.
  9. J. G. Smith, “Polycarbonate and Epoxy Resin Manufacturing,” Plastics Engineering, 2018, 74(9), 34–41.
  10. S. S. Kim et al., “Continuous Process for Bisphenol A Production,” Chemical Engineering Journal, 2015, 262, 784–792.
  11. M. K. Patel et al., “Energy Efficiency in Chemical Process Industry,” Applied Energy, 2011, 88(12), 4891–4897.
  12. Dow Chemical Company, “Ion Exchange Resin Performance in BPA Production,” Technical Data Sheet, 2020.
  13. Y. Tanaka et al., “Waste Minimization in BPA Manufacturing,” Journal of Cleaner Production, 2019, 234, 1205–1212.
  14. P. T. Anastas, J. C. Warner, “Green Chemistry: Theory and Practice,” Oxford University Press, 1998.
Link
System Info

Updated by
UserPic  Kokel, Nicolas
Updated
6/17/2025 3:16 PM
Added
11/29/2022 6:40 PM
Solutions
Solutions

Solution-Reference:

#TT91

No Services yet available.
Enquire in Solutions how we can help you.

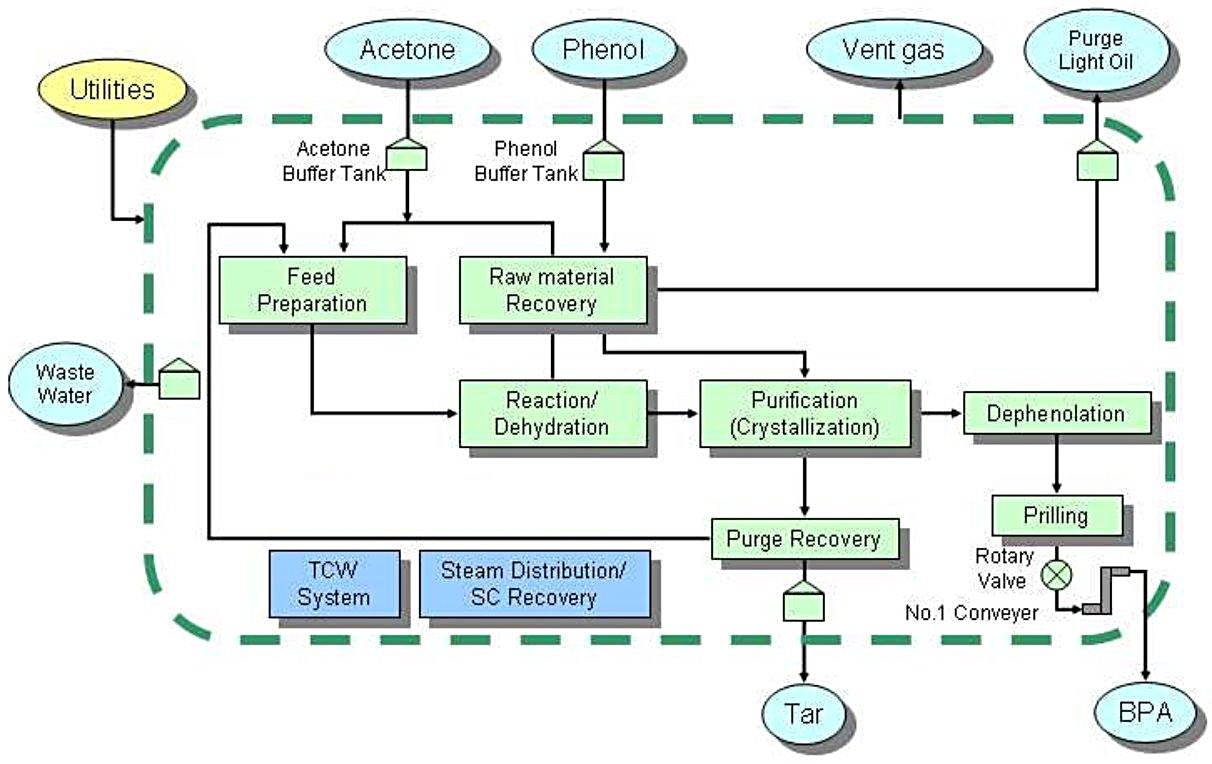

Bisphenol-A simplified manufacturing process flow diagram https://www.m-chemical.co.jp/en/petrochem-license/technologies/pdf/Introduction_MCC_BPA_Process.pdf
